Custom RC Flying Wing

HARDWARE & SOFTWARE2025-02-24
Full RC flying wing system
Full system — FC, VTX, 2x 2g servos, ESP32

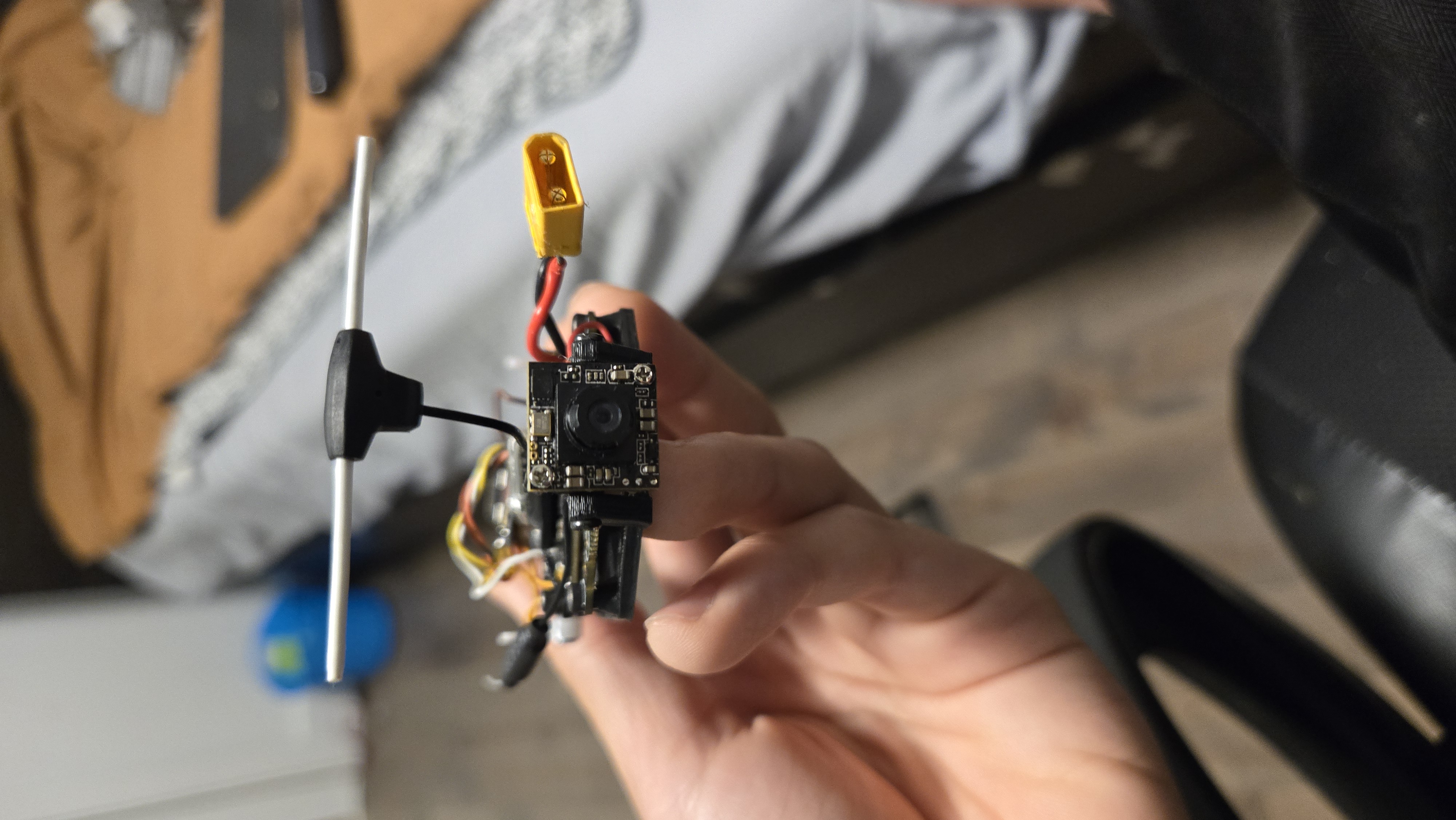

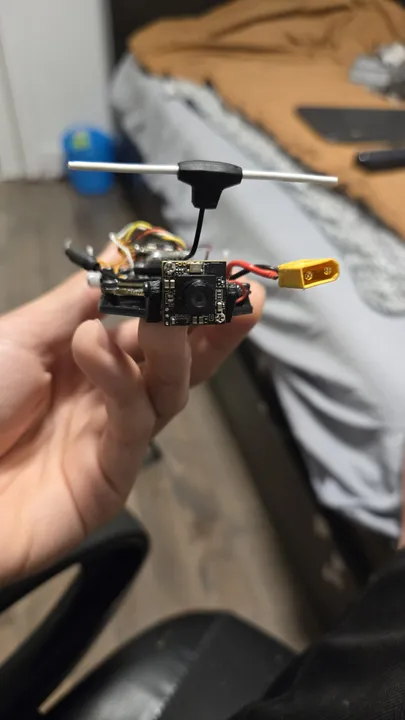

Controller board front view

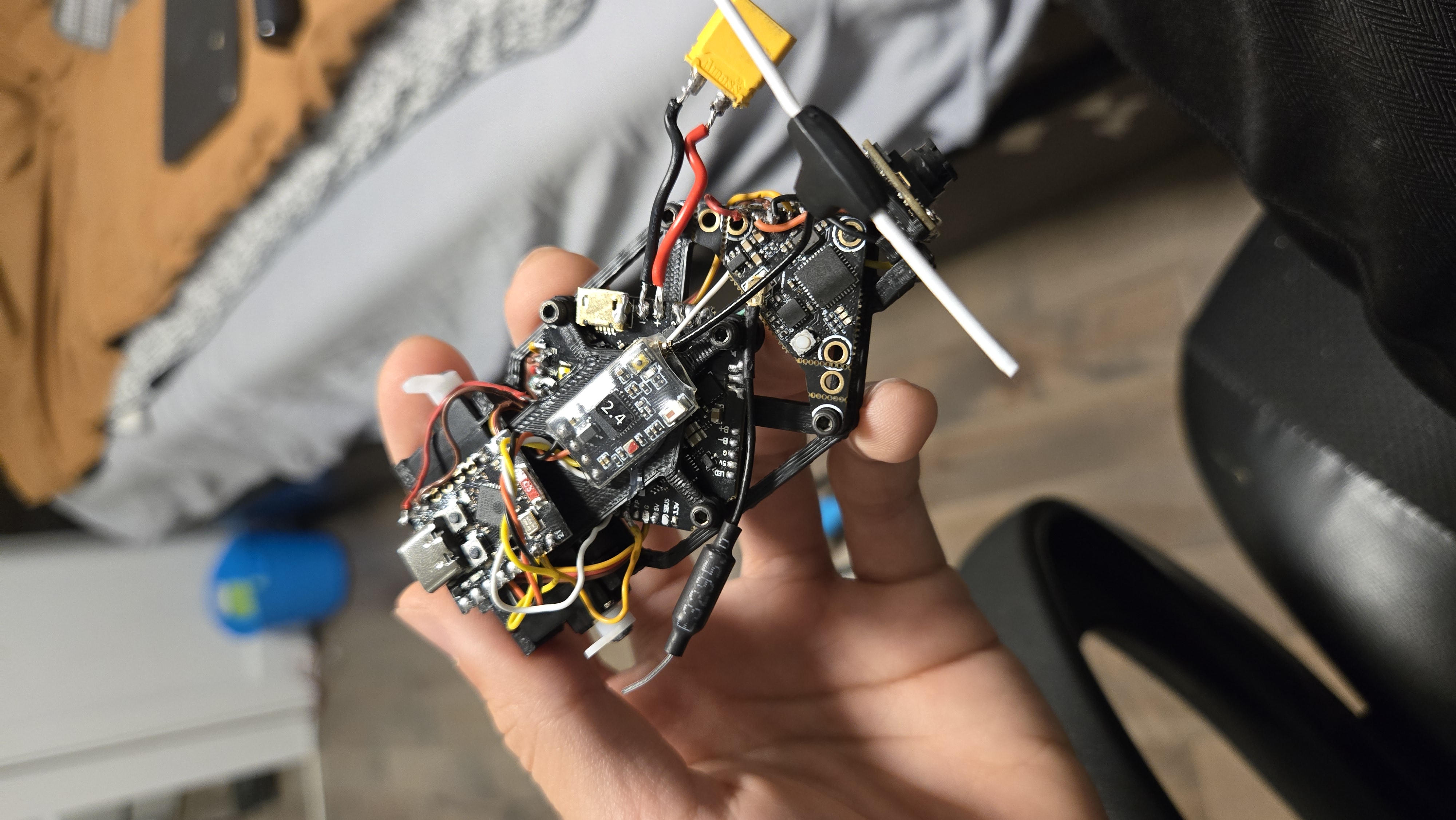

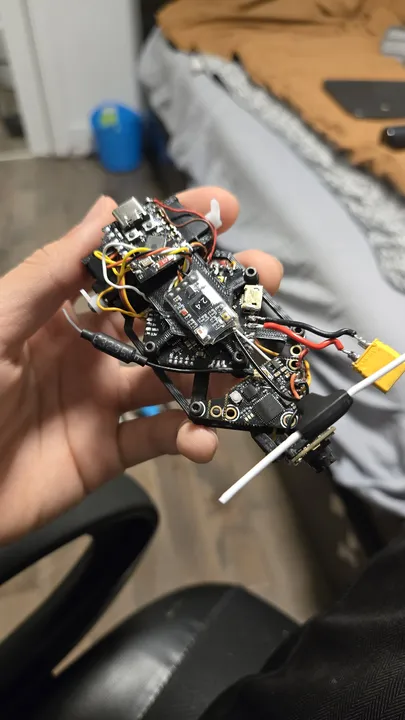

Controller board wiring skeleton

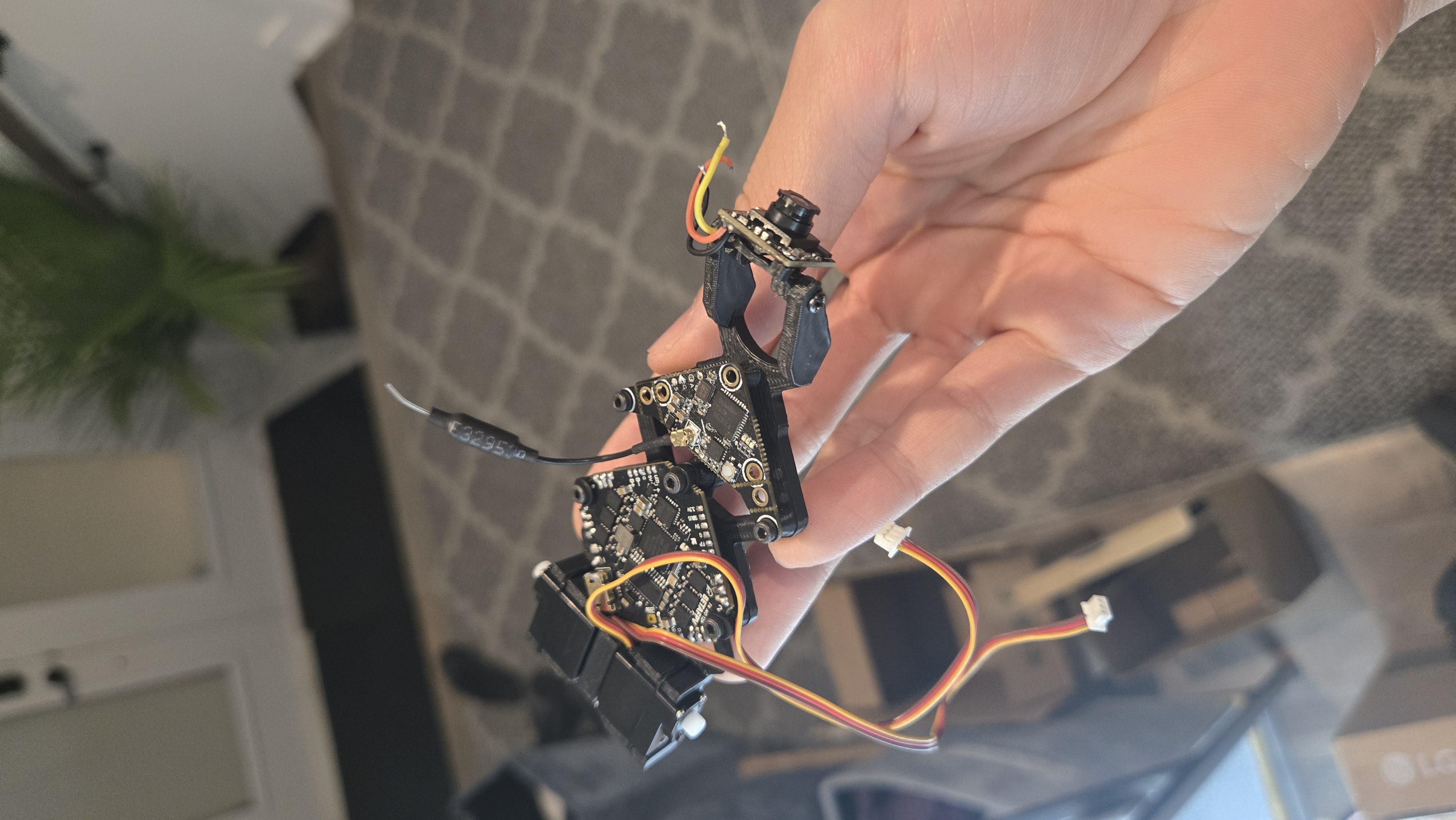

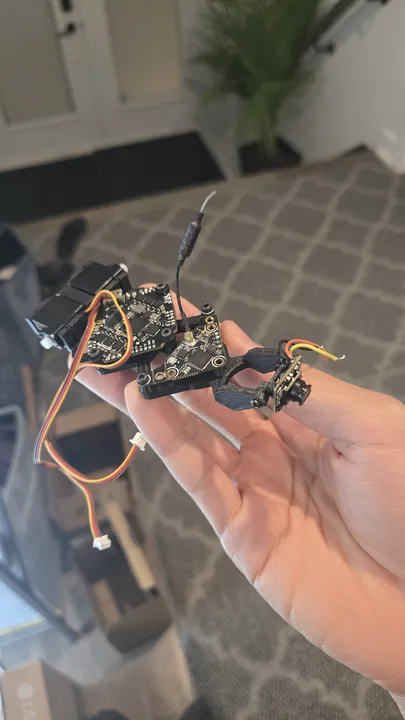

Controller board upper view

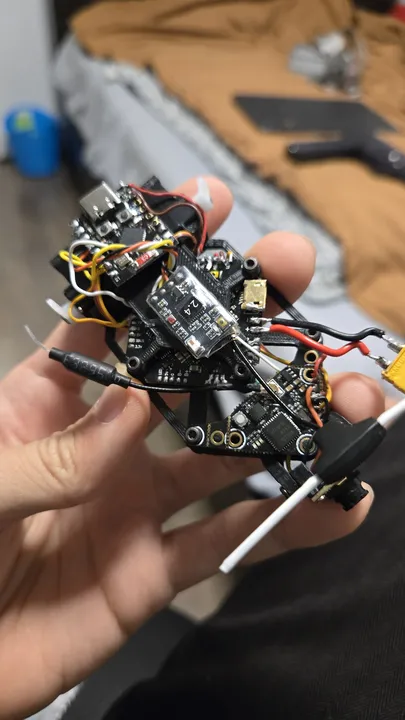

Top-down view of flying wing
Full RC flying wing system
Controller board front view
Controller board wiring skeleton
Controller board upper view
Top-down view of flying wing
Full RC flying wing system
Controller board front view
Controller board wiring skeleton
Controller board upper view
Top-down view of flying wing

Design Objective

The objective was the development of a centralized avionics and signal-translation subsystem for a high-performance fixed-wing platform. The project focused on the integration of disparate telemetry protocols (CRSF to SBUS) into a single, custom-fabricated PCB.

Avionics Architecture

The system utilizes an ESP32 microprocessor as the primary signal-translation node, successfully bridging the high-speed CRSF stream from an ELRS receiver to the legacy SBUS protocol required by the flight controller. The dual-axis elevon configuration is driven by 2g micro-servos, with all telemetry, video transmission (VTX), and optics integrated directly into the custom-routed control board to minimize volumetric displacement and improve center-of-gravity management.

  • RF Protocol: ELRS (ExpressLRS) via CRSF.
  • Logic Node: ESP32 (proprietary CRSF to SBUS translation).
  • Actuation: Dual high-torque 2g micro-servos.

Status & Conclusion

The bench testing phase successfully validated the signal integrity of the custom-fabricated board and the reliability of the command-link translation logic. While the airframe construction was completed, the platform remains in a pre-flight "archived" state due to the prioritization of subsequent high-dynamic multirotor deployments. The project serves as a validated engineering model for custom fixed-wing avionics integration.

Built at 15 years 11 months
