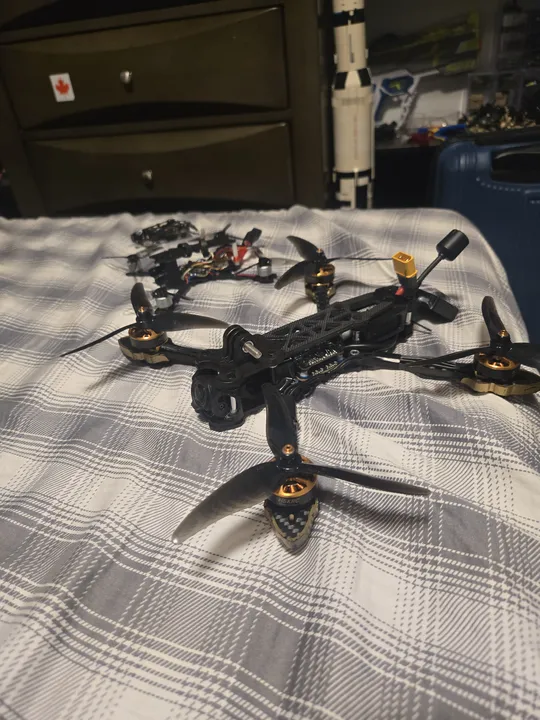

5-Inch FPV Drone
Design Specification
The objective was to engineer a cost-optimized 5-inch high-performance multirotor platform capable of digital high-definition video transmission. The build architecture prioritized signal-to-noise ratio in both telemetry and video downlink.
Vibration Mitigation
To minimize gyroscopic noise and prop-wash artifacts, the flight controller and video transmitter (DJI O3) are mounted on custom-engineered TPU (Thermoplastic Polyurethane) vibration-damping standoffs. TPU's inherent damping properties decouple the components from high-frequency resonant frequencies generated by the 5-inch prop-disc, resulting in cleaner PID controller input and improved video stability.

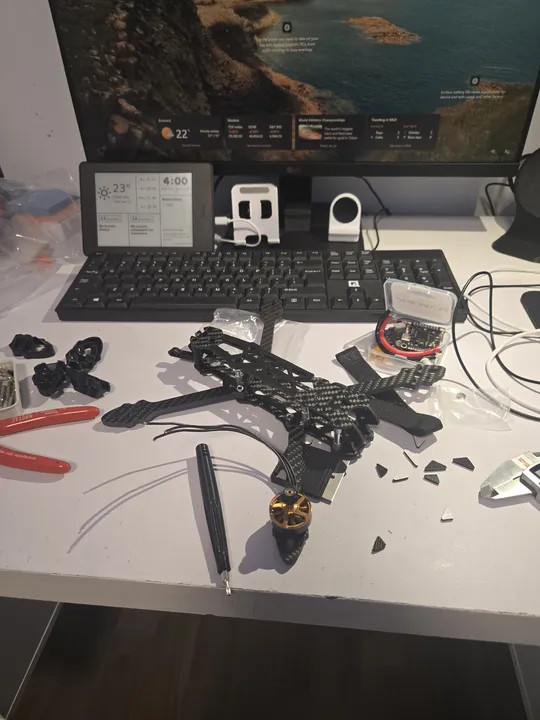

Assembly & Thermal Management

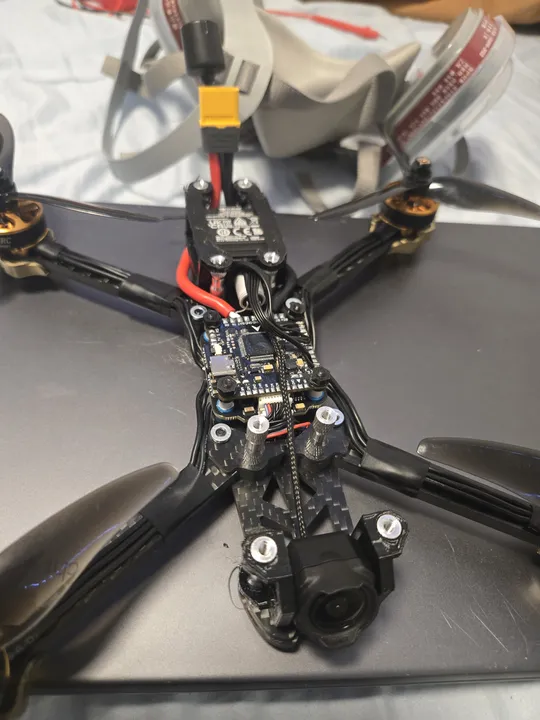

Cable routing and electrical shield placement were pre-calculated to optimize volumetric efficiency within the carbon fiber frame. Power distribution and signal integrity were prioritized through high-current soldering and EMI-conscious routing.
Operational Results
Validation flights confirmed a significant reduction in visible motor-induced oscillation compared to rigid mounting benchmarks. The platform successfully leveraged the digital video bandwidth of the O3 unit to provide superior pilot fidelity while maintaining the flight dynamics required for high-stress freestyle maneuvers.
Built at 16 years 6 months
